跨主机组网Flannel
跨主机组网
规划
| IP | 节点作用 | Namespace |
|---|---|---|
| 10.168.0.94 | ETCD01(3.5.2) / Flannel(v0.17.0) | namespace94-01 namespace94-02 |
| 10.168.0.95 | ETCD02(3.5.2) / Flannel(v0.17.0) | namespace95-01 namespace95-02 |
| 10.168.0.96 | ETCD03(3.5.2) / Flannel(v0.17.0) | namespace96-01 namespace96-02 |
Flannel原理和部署

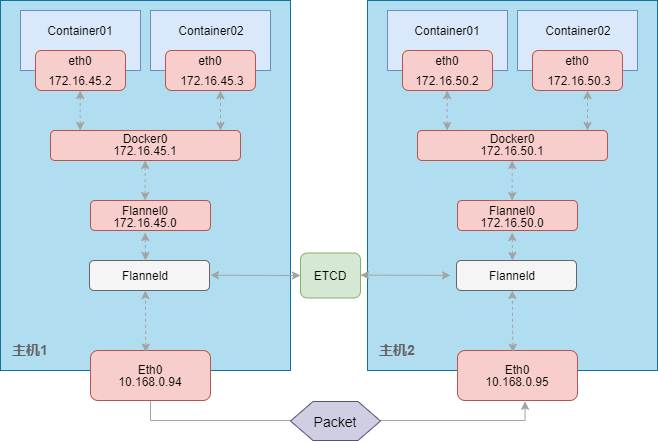

（一）flannel原理
（二）前置部署ssl相关
（1）ssl工具安装
wget -O /usr/bin/cfssl https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssl_1.6.1_linux_amd64
wget -O /usr/bin/cfssljson https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssljson_1.6.1_linux_amd64
chmod a+x /usr/bin/cfssl*
（2）下载安装包
# mkdir -p /root/install_flannel{pkg,ssl}
# etcd-v3.5.2-linux-amd64.tar.gz，flannel-v0.17.0-linux-amd64.tar.gz放到/root/install_flannel/pkg,然后解压（省略）
# cp -rp flanneld /usr/local/bin/
# cp -rp etcd-v3.5.2-linux-amd64/etcd* /usr/local/bin/
（3）证书
# cd /root/install_flannel
# cat > ssl/ca-config.json <<EOF
{
"signing": {
"default": {
"expiry": "87600h"
},
"profiles": {
"kubernetes": {
"usages": [
"signing",
"key encipherment",
"server auth",
"client auth"
],
"expiry": "876000h"
}
}
}
}
EOF
# cat > ssl/ca-csr.json << EOF
{
"CN": "kubernetes",
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "ShangHai",
"L": "ShangHai",
"O": "k8s",
"OU": "System"
}
],
"ca": {
"expiry": "876000h"
}
}
EOF
# cd ssl && cfssl gencert -initca ca-csr.json | cfssljson -bare ca
# cat > ssl/etcd-csr.json << EOF
{
"CN": "etcd",
"hosts": [
"127.0.0.1",
"10.168.0.99",
"10.168.0.98",
"10.168.0.97"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "ChengDu",
"L": "ChengDu",
"O": "k8s",
"OU": "System"
}
]
}
EOF
# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes etcd-csr.json | cfssljson -bare etcd
(4)ECTD相关证书
[root@cd.ops.k8s-node-01:/opt/etcd]#ll ssl/
total 20
-rw-r--r-- 1 root root 1318 Apr 11 11:17 ca.pem
-rw-r--r-- 1 root root 1062 Apr 11 11:18 etcd.csr
-rw-r--r-- 1 root root 293 Apr 11 11:17 etcd-csr.json
-rw------- 1 root root 1679 Apr 11 11:18 etcd-key.pem
-rw-r--r-- 1 root root 1440 Apr 11 11:18 etcd.pem
（三）ETCD集群部署
尤其注意v2和v3的区别，和操作区别
（1）创建ETCD运行目录和配置文件 mkdir /opt/etcd && mkdir -p /opt/etcd/ssl && mkdir -p /var/lib/etcd/default.etcd
（2）配置文件 vim /opt/etcd/etcd.conf
#[Member]
ETCD_NAME="etcd01"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://10.168.0.94:2380" #集群通信端口
ETCD_LISTEN_CLIENT_URLS="https://10.168.0.94:2379" #监听的数据端口
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://10.168.0.94:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://10.168.0.94:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://10.168.0.94:2380,etcd02=https://10.168.0.95:2380,etcd03=https://10.168.0.96:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster" #认证token
ETCD_INITIAL_CLUSTER_STATE="new"
(3) ETCD证书拷贝到运行目录
# cp -rp /root/install_flannel/ssl/etcd* /opt/etcd/ssl/
# cp -rp /root/install_flannel/ssl/ca.pem /opt/etcd/ssl/
(4) 创建ETCD服务 vim /usr/lib/systemd/system/etcd.service –enable-v2 参数开启
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
[Service]
Type=notify
EnvironmentFile=-/opt/etcd/etcd.conf
ExecStart= /usr/local/bin/etcd \
--enable-v2 \
--cert-file=/opt/etcd/ssl/etcd.pem \
--key-file=/opt/etcd/ssl/etcd-key.pem \
--peer-cert-file=/opt/etcd/ssl/etcd.pem \
--peer-key-file=/opt/etcd/ssl/etcd-key.pem \
--trusted-ca-file=/opt/etcd/ssl/ca.pem \
--peer-trusted-ca-file=/opt/etcd/ssl/ca.pem
Restart=on-failure
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
(5)启动服务
systemctl daemon-reload
systemctl enable etcd
systemctl restart etcd
(6)查看状态
etcdctl --endpoints=https://10.168.0.94:2379,https://10.168.0.95:2379,https://10.168.0.96:2379 --cacert=/opt/etcd/ssl/ca.pem --cert=/opt/etcd/ssl/etcd.pem --key=/opt/etcd/ssl/etcd-key.pem endpoint health
（四）Flannel部署
（1）下载解压（略）
（2）创建运行目录 mkdir /opt/flannel
（3）创建配置文件 cd /opt/flannel && vim flanneld.conf
FLANNEL_ETCD="-etcd-endpoints=https://10.168.0.94:2379,https://10.168.0.95:2379,https://10.168.0.96:2379"
FLANNEL_ETCD_KEY="-etcd-prefix=/xwfintech.com/network"
FLANNEL_ETCD_CAFILE="-etcd-cafile=/opt/etcd/ssl/ca.pem"
FLANNEL_ETCD_CERTFILE="-etcd-certfile=/opt/etcd/ssl/etcd.pem"
FLANNEL_ETCD_KEYFILE="-etcd-keyfile=/opt/etcd/ssl/etcd-key.pem"
（4）创建service vim /usr/lib/systemd/system/flanneld.service
[Unit]
Description=Flanneld overlay address etcd agent
After=network-online.target network.target
Before=docker.service
[Service]
Type=notify
EnvironmentFile=/opt/flannel/flanneld.conf
ExecStart=/usr/local/bin/flanneld --ip-masq ${FLANNEL_ETCD} ${FLANNEL_ETCD_KEY} ${FLANNEL_ETCD_CAFILE} ${FLANNEL_ETCD_CERTFILE} ${FLANNEL_ETCD_KEYFILE}
Restart=on-failure
[Install]
WantedBy=multi-user.target
（5）启动Flannel
systemctl daemon-reload
systemctl start flanneld
其他主机一样的安装完毕
不同NS网络组网
上面的flannel安装启动完毕后，三个主机上的flanneld只是处于loaded状态，不会处于active状态，因为我们还没定义网络。
为了简化操作，我们添加一条alias，alias etcdopt="ETCDCTL_API=2 etcdctl --endpoints=https://10.168.0.94:2379,https://10.168.0.95:2379,https://10.168.0.96:2379 --ca-file=/opt/etcd/ssl/ca.pem --cert-file=/opt/etcd/ssl/etcd.pem --key-file=/opt/etcd/ssl/etcd-key.pem"
后续的操作都以etcdopt命令来执行。
etcdopt set /xwfintech.com/network/config '{ "Network": "172.22.0.0/16"}'
注意： flannel只能使用v2来操作，v3不兼容
使用上面的命令为ETCD写入网络的网段后，此时我们查看宿主机的三台主机多了一个flannel0的网卡分别如下
# 10.168.0.94 主机
3: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1472 qdisc pfifo_fast state UNKNOWN group default qlen 500
link/none
inet 172.22.82.0/32 scope global flannel0
valid_lft forever preferred_lft forever
inet6 fe80::2660:9d65:f860:9613/64 scope link flags 800
valid_lft forever preferred_lft forever
# 10.168.0.95 主机
3: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1472 qdisc pfifo_fast state UNKNOWN group default qlen 500
link/none
inet 172.22.13.0/32 scope global flannel0
valid_lft forever preferred_lft forever
inet6 fe80::5bc9:a56:90f4:400c/64 scope link flags 800
valid_lft forever preferred_lft forever
# 10.168.0.96 主机
3: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1472 qdisc pfifo_fast state UNKNOWN group default qlen 500
link/none
inet 172.22.66.0/32 scope global flannel0
valid_lft forever preferred_lft forever
inet6 fe80::d965:b340:7900:9f8f/64 scope link flags 800
valid_lft forever preferred_lft forever
上面三个宿主机我们可以看到flannel0配置的IP分别是172.22.82.0/32、172.22.13.0/32、172.22.66.0/32, 我们看下ETCD中的数据
# etcdopt ls /xwfintech.com/network/subnets
/xwfintech.com/network/subnets/172.22.13.0-24
/xwfintech.com/network/subnets/172.22.82.0-24
/xwfintech.com/network/subnets/172.22.66.0-24
查看Flannel配置了些什么
# etcdopt get /xwfintech.com/network/subnets/172.22.13.0-24
{"PublicIP":"10.168.0.95","PublicIPv6":null}
flannel默认把网络定义信息写入到本地的 /run/flannel/subnet.env中，查看文件中的信息如下：
FLANNEL_NETWORK=172.22.0.0/16
FLANNEL_SUBNET=172.22.82.1/24
FLANNEL_MTU=1472
FLANNEL_IPMASQ=true
flannel创建的iptables转发规则如下：
[root@cd.ops.k8s-node-01:~]#iptables -S -t nat
-P PREROUTING ACCEPT
-P INPUT ACCEPT
-P OUTPUT ACCEPT
-P POSTROUTING ACCEPT
-A POSTROUTING -s 172.22.0.0/16 -d 172.22.0.0/16 -m comment --comment "flanneld masq" -j RETURN
-A POSTROUTING -s 172.22.0.0/16 ! -d 224.0.0.0/4 -m comment --comment "flanneld masq" -j MASQUERADE
-A POSTROUTING ! -s 172.22.0.0/16 -d 172.22.82.0/24 -m comment --comment "flanneld masq" -j RETURN
-A POSTROUTING ! -s 172.22.0.0/16 -d 172.22.0.0/16 -m comment --comment "flanneld masq" -j MASQUERADE
[root@cd.ops.k8s-node-01:~]#iptables -S
-P INPUT ACCEPT
-P FORWARD ACCEPT
-P OUTPUT ACCEPT
-A FORWARD -s 172.22.0.0/16 -m comment --comment "flanneld forward" -j ACCEPT
-A FORWARD -d 172.22.0.0/16 -m comment --comment "flanneld forward" -j ACCEPT
Docker使用Flannel容器组网
安装Docker(主机0.94,其他主机配置类似)
# yum install -y yum-utils
# yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
# yum-config-manager --enable docker-ce-nightly
# yum-config-manager --enable docker-ce-test
# yum-config-manager --disable docker-ce-nightly
# yum install docker-ce docker-ce-cli containerd.io
默认网卡查看ip add
.....省略.....
3: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1472 qdisc pfifo_fast state UNKNOWN group default qlen 500
link/none
inet 172.22.82.0/32 scope global flannel0
valid_lft forever preferred_lft forever
inet6 fe80::9d7e:302f:5b01:2506/64 scope link flags 800
valid_lft forever preferred_lft forever
4: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
link/ether 02:42:1b:3a:f9:2e brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
valid_lft forever preferred_lft forever
查看flannel网络配置cat /run/flannel/subnet.env
FLANNEL_NETWORK=172.22.0.0/16
FLANNEL_SUBNET=172.22.82.1/24
FLANNEL_MTU=1472
FLANNEL_IPMASQ=true
修改docker service后重启
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --bip=172.22.82.1/24 --mtu=1472
增加--bip=172.22.82.1/24 --mtu=1472 和 /run/flannel/subnet.env里面的保持一致。
–bip参数，会把172.22.82.1作为网关，然后–bip=172.22.82.0/24作为当前宿主机上所有container分配的ip地址池。
再次查看网卡ip add
...... 省略 ......
3: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1472 qdisc pfifo_fast state UNKNOWN group default qlen 500
link/none
inet 172.22.82.0/32 scope global flannel0
valid_lft forever preferred_lft forever
inet6 fe80::9d7e:302f:5b01:2506/64 scope link flags 800
valid_lft forever preferred_lft forever
4: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
link/ether 02:42:1b:3a:f9:2e brd ff:ff:ff:ff:ff:ff
inet 172.22.82.1/24 brd 172.22.82.255 scope global docker0
valid_lft forever preferred_lft forever
其他主机按照类似的配置完毕
测试
（1）在0.94上运行web1
# docker run -itd --name web1 hub.xwfintech.com/busybox
# docker exec -it web1 ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
5: eth0@if6: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1472 qdisc noqueue state UP group default
link/ether 02:42:ac:16:52:02 brd ff:ff:ff:ff:ff:ff
inet 172.22.82.2/24 brd 172.22.82.255 scope global eth0
valid_lft forever preferred_lft forever
（2）在0.95上运行web2
# docker run -itd --name web2 hub.xwfintech.com/busybox
# docker exec -it web2 ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
5: eth0@if6: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1472 qdisc noqueue state UP group default
link/ether 02:42:ac:16:0d:02 brd ff:ff:ff:ff:ff:ff
inet 172.22.13.2/24 brd 172.22.13.255 scope global eth0
valid_lft forever preferred_lft forever
(3) 在0.95上web2到0.94的web1进行连通性测试
#docker exec -it web2 ping -c 1 172.22.82.2
PING 172.22.82.2 (172.22.82.2): 56 data bytes
64 bytes from 172.22.82.2: seq=0 ttl=60 time=1.337 ms
--- 172.22.82.2 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 1.337/1.337/1.337 ms
